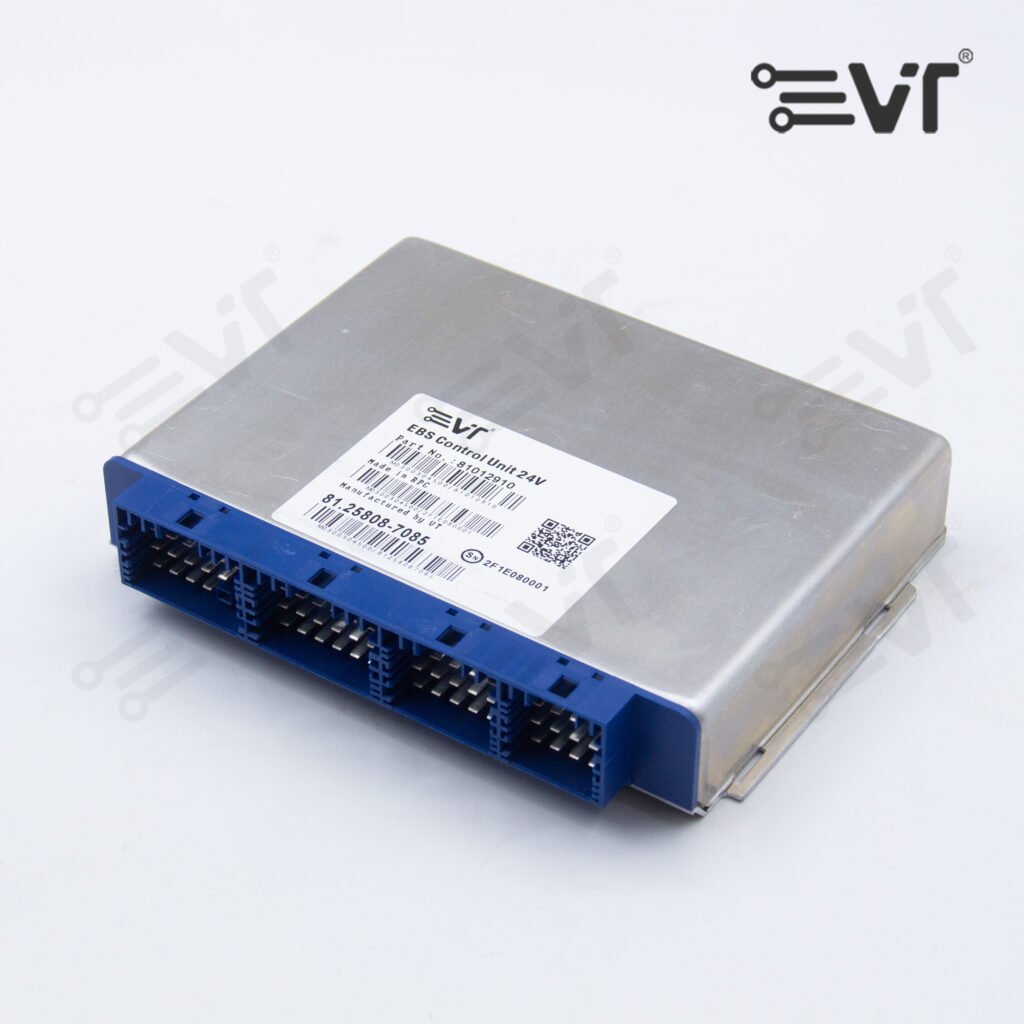

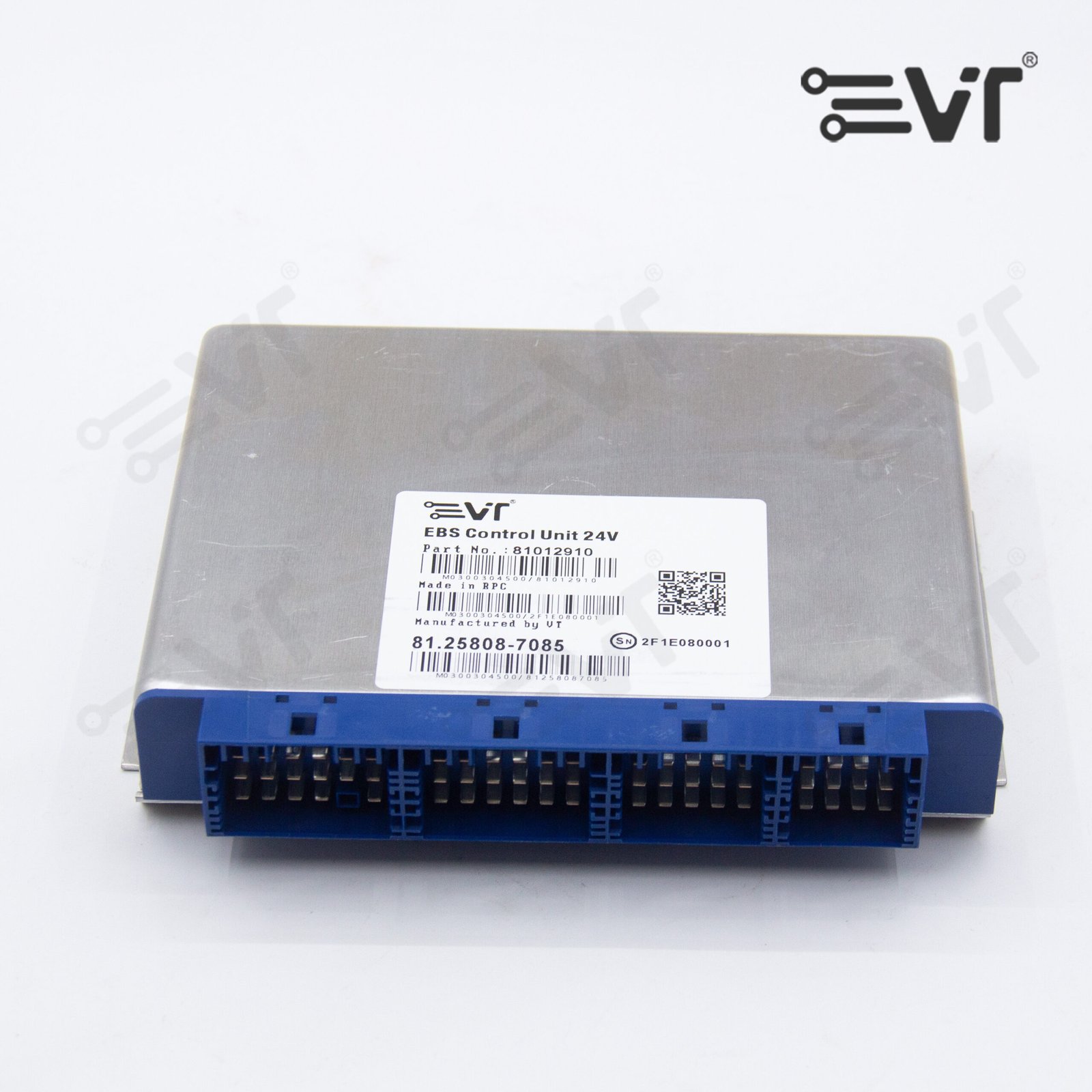

MAN EBS Module: Advanced Electronic Braking System for Enhanced Commercial Vehicle Safety

Product Overview

The MAN EBS (Electronic Braking System) Module is a core safety and control component engineered to provide intelligent, responsive braking performance for modern commercial vehicles. It serves as the central electronic control unit that manages and optimizes braking force distribution, ensuring maximum safety, stability, and efficiency under all driving conditions.

Key Technical Features

Intelligent Brake Management

• Real-time brake force distribution and pressure modulation
• Integrated ABS, ASR, and ESC functionalities for enhanced vehicle control
• Load-sensing adaptation to optimize braking based on vehicle weight

Predictive Safety & Diagnostics

• Continuous monitoring of brake lining wear and system performance
• Pre-failure detection and maintenance alerts via MAN Telematics
• Support for Emergency Brake Assist (EBA) and Hill Hold functions

System Integration & Connectivity

• Seamless communication with MAN’s vehicle networks (CAN J1939/CAN FD)
• Compatibility with Advanced Emergency Braking Systems (AEBS)
• Readiness for telematics and fleet management platform integrati

Operational Benefits

Enhanced Safety & Control

• Shorter braking distances through precise brake force application
• Improved stability in emergency braking and evasive maneuvers
• Consistent braking performance across varying load conditions

Reduced Maintenance & Downtime

• Predictive alerts for brake wear and system diagnostics
• Extended service life of brake components through optimized usage
• Remote troubleshooting and fault code analysis capabilities

Regulatory Compliance & Fleet Efficiency

• Designed to meet ECE R13 and other international safety standards
• Supports driver coaching through braking behavior analytics
• Enables fleet-wide safety reporting and performance benchmarking

Technical Specifications

• Operating Voltage: 12V / 24V compatible
• Communication Protocols: CAN J1939, CAN FD, LIN
• Protection Rating: IP6K9K (dust and high-pressure water resistant)
• Operating Temperature Range: -40°C to +85°C
• Safety Certification: ISO 26262 ASIL-C compliant
• Update Support: Flash-programmable via service interface

Applications & Compatibility

• Suitable for MAN TGX, TGS, TGM, and TGL series
• Ideal for long-haul, regional distribution, and construction transport
• Compatible with a wide range of trailer braking systems
• Designed for integration into MAN’s digital ecosystem and telematics services
