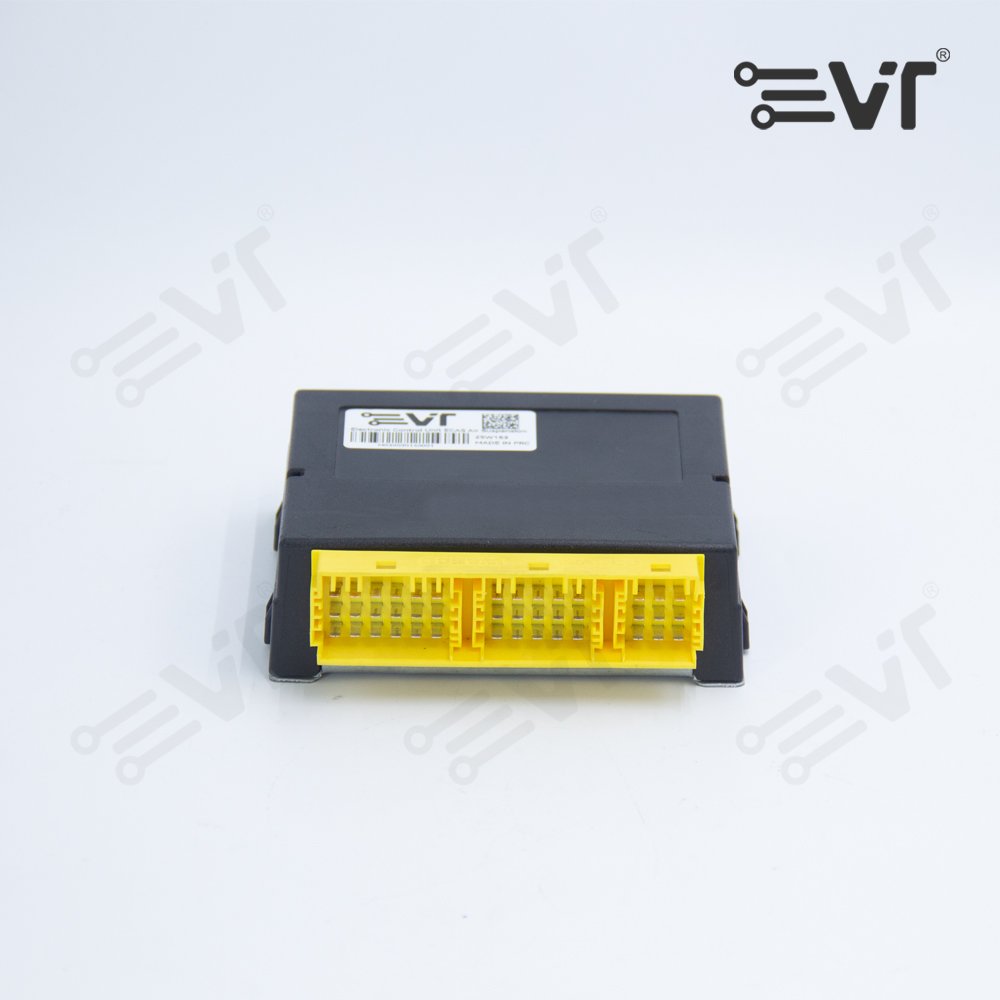

MAN ECAS Module: Advanced Electronic Air Suspension Control System

Product Overview

The MAN ECAS (Electronically Controlled Air Suspension) Module is a sophisticated electronic control unit designed to provide intelligent management of air suspension systems in commercial vehicles. This advanced system ensures optimal ride comfort, vehicle stability, and load handling across various operating conditions while enabling automatic leveling and height adjustment capabilities.

Technical Features & Capabilities

Intelligent Suspension Management

• Automatic vehicle leveling across all load conditions
• Real-time air spring pressure adjustment for optimal ride quality
• Integrated load sensing and weight distribution optimization

Operational Mode Control

• Multiple preset height settings (normal, kneeling, off-road, highway)
• Automated axle load transfer and lifting axle control
• Speed-dependent suspension firmness adjustment

System Integration & Diagnostics

• CAN-based communication with vehicle electronic systems
• Integrated fault diagnosis and self-test capabilities
• Compatibility with MAN Telematics for remote monitoring

Operational Benefits

Enhanced Ride Comfort & Stability

• Significantly reduced driver fatigue through vibration damping
• Improved vehicle handling and cornering stability
• Consistent ride quality regardless of load variations

Loading & Operational Efficiency

• Automated kneeling function for easier loading/unloading
• Optimized trailer coupling height adjustment
• Reduced cargo damage through better vibration isolation

Maintenance & Safety Advantages

• Extended suspension component life through intelligent control
• Load monitoring and overload protection capabilities
• Reduced air system consumption and energy efficiency

Technical Specifications

• Operating Voltage: 24V DC with 12V compatibility
• Control Channels: Up to 4 air spring circuits
• Communication: CAN J1939, CANopen compatibility
• Height Sensors: Integrated precision position sensing
• Operating Temperature: -40°C to +85°C
• Protection Class: IP6K7 (dust and water resistant)
• Certifications: ECE standards compliant

Applications & Compatibility

• MAN TGX, TGS, and TGM series vehicles
• Long-haul transportation and coach applications
• Specialized transport requiring precise load handling
• Vehicles with lifting axles or multi-axle configurations
